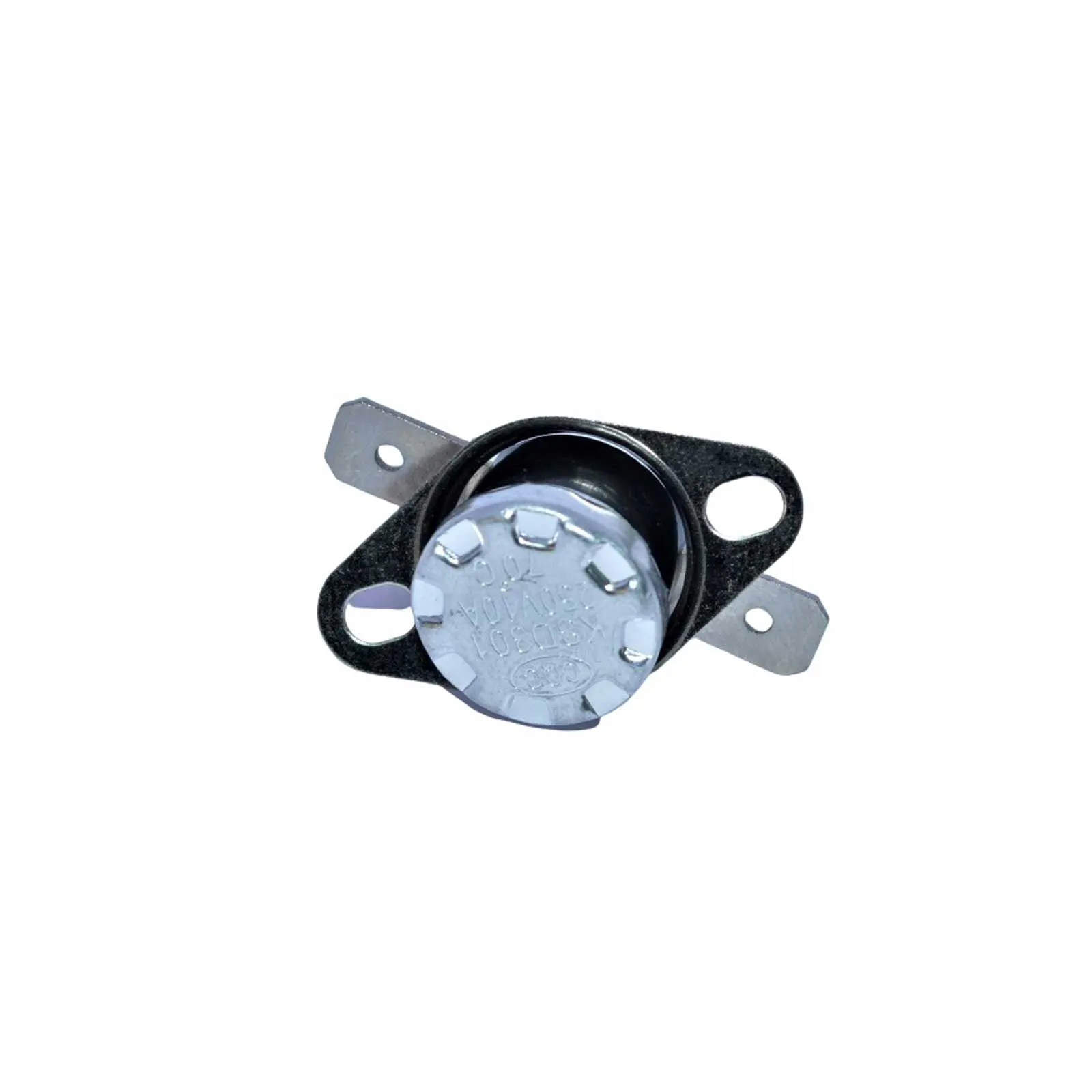

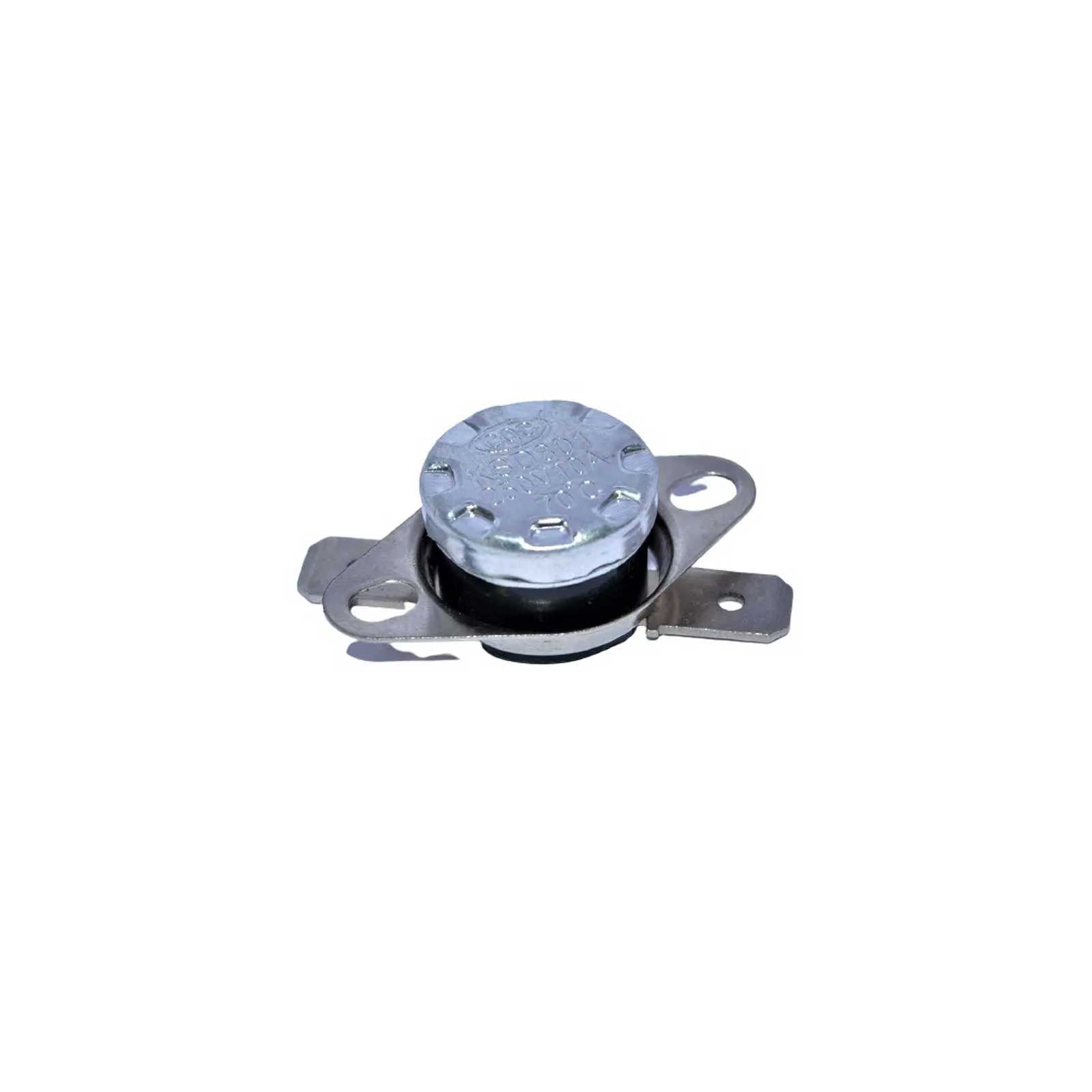

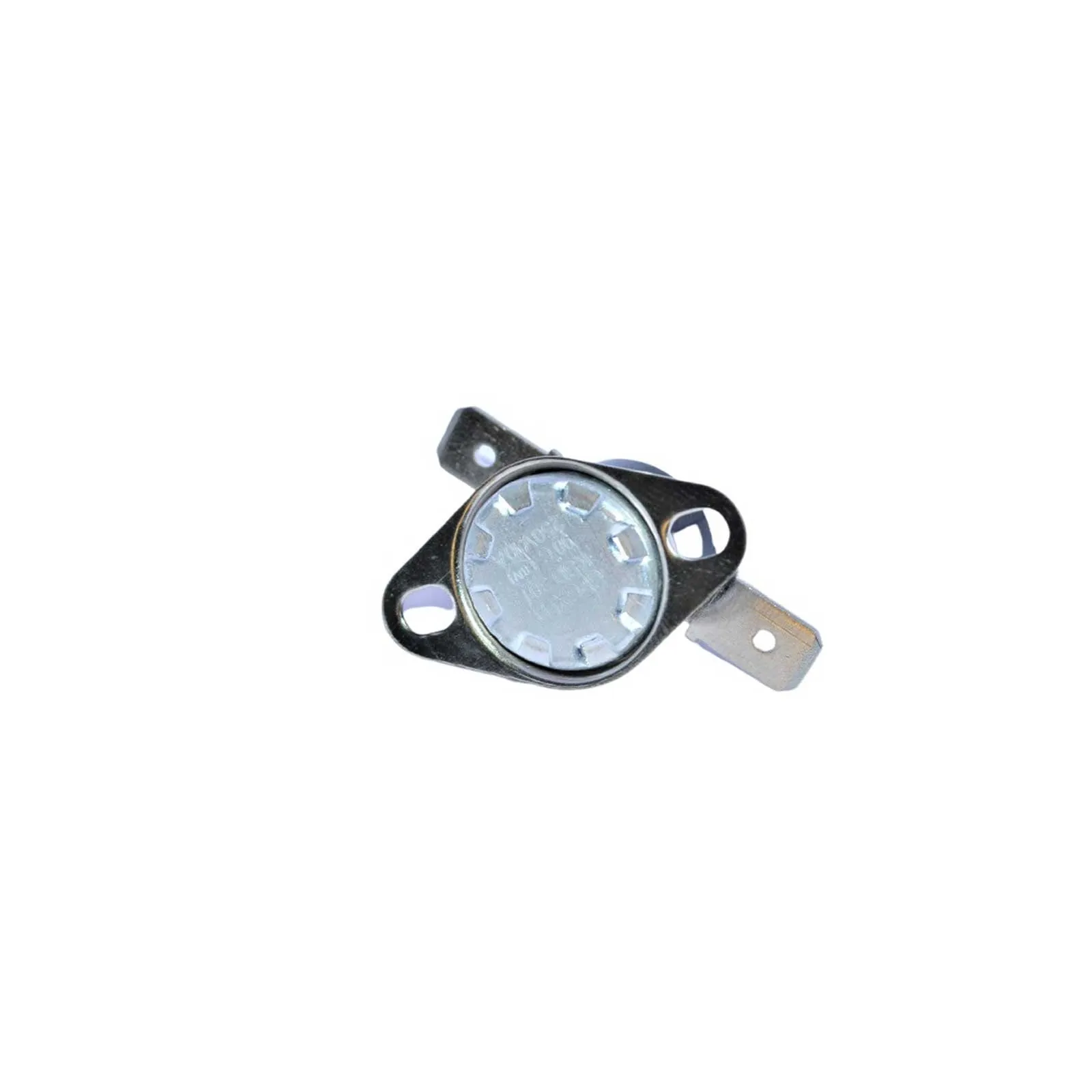

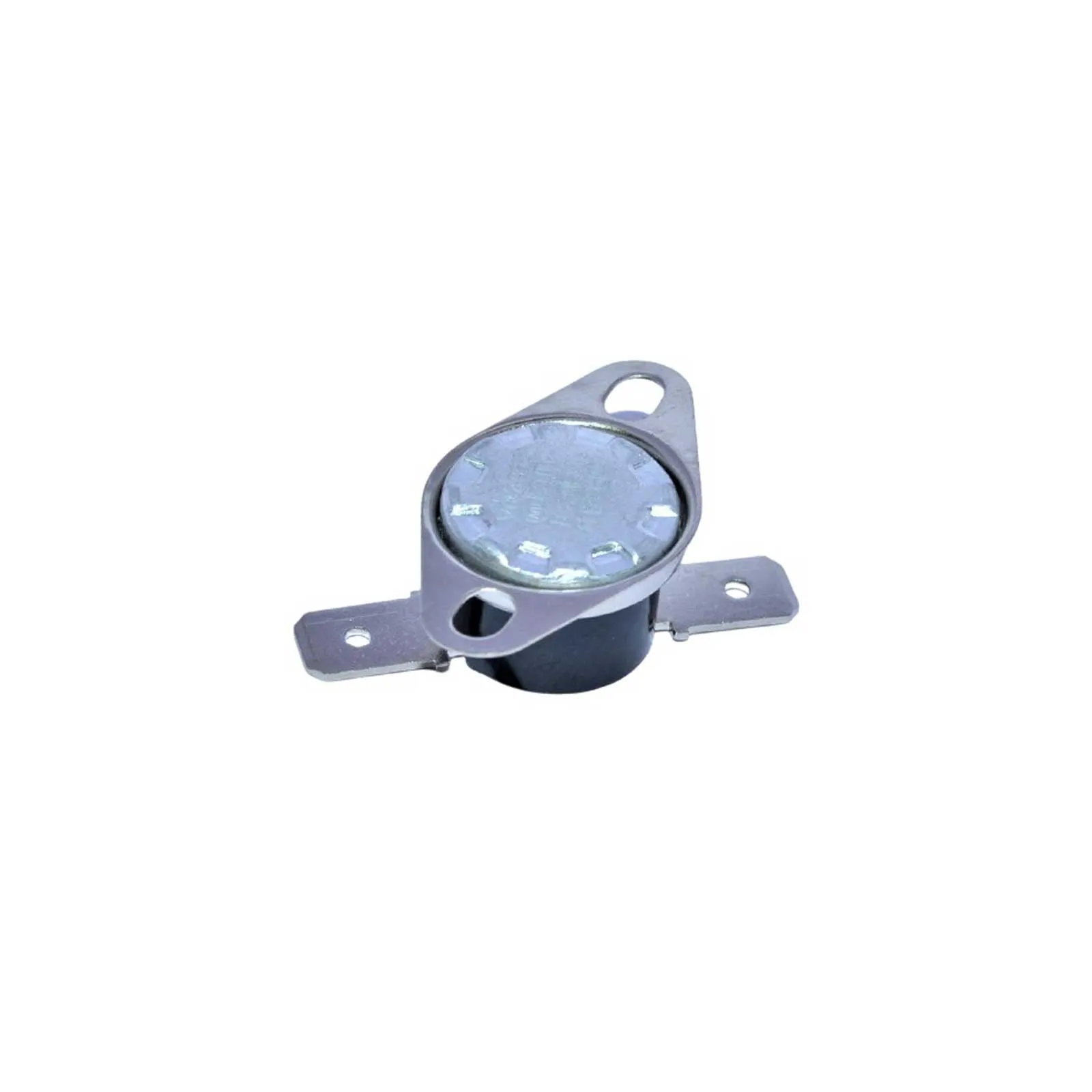

KSD301 Round Metal Thermostat is a Thermal Control Switch 250V 10A NC (Normally Closed) The original state of temperature control switch contact is closed, and open when the temperature sensing exceeds the rated temperature. This KSD301 thermostat is used widely for coffee makers, water heaters, immersion heaters, electric cookers, microwave ovens, automatic toasters, etc. It is closed until the temperature reaches 70 Celsius degree, then the switch opens. Widely used for temperature control or protection for household electric appliances. Widely used for temperature control or protection for household electric appliances.
Features
- Double metal chip
- Contact sensor, speed dynamic type
- Sensitive, reliable, safe,
- Stable action temperature
- Long service life
- No arc phenomenon automatically reset
Specification
Rated Voltage | 250V |
Rated Current | 10A |
Model | KSD 301 |
Action type | Normally closed |
Action Temperature | 70°C/90°C/100°C/120°C/185°C |
Material | Metal |
| Country of Origin | China |
